MPIF0630 Series

CLASSIFICATION
DIMENSIONS
环保
DRAWING
Dingtalk_20230621191642
分享到：
PARAMETER
1.Dimensions (unit:mm)


Series

A

B

C

D

E

a

(typ)

b

(typ)

c

(typ)

MPIF0630

7.10±0.30

6.60±0.20

3.00MAX

3.00±0.50

1.60±0.50

3.70

8.40

3.50


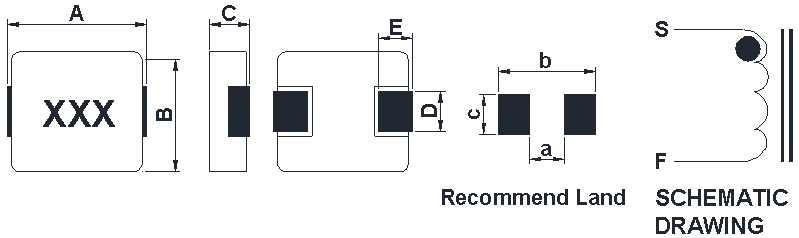

  By Dimensional diagram


2.Features

High rated current
Frequency up to 3MHz
125℃maximum total temperature operation
Low coreloss
Ultra low buzz noise due to molding construction
Halogen Free & ROHS compliant
3.Applications
DC/DC converters in distributed power systems.
DC/DC converter for Field Programmable Gate Array(FPGA).
Battery powered devices.
Thin type on-board power supply module for exchanger.
VRM for server.
High current, low profile POL converters.
PDA/notebook/desktop/server and battery powered devices.

4.Part Number System

    MPIF   XXXX - XXX    X
       1         2           3      4

   1.SERIES NAME
   2.DIMENSIONS
   3.INDUCTANCE
   4.TOLERANCE CODE: J:±5% K:±10% L:±15% M:±20% P:±25% N:±30%


5.Electrical Characteristics


Part No.

Inductance

DC

Resistance

Saturation Current

Heating Rating

Current

L0 (μH)

DCR (mΩ)

Isat (A)

Irms (A)

±20 %, 100 kHz, 1V

MAX

MAX(TYP)

MAX(TYP)

MPIF0630-R10M-XS

0.10

1.7

53.0(60.0)

28.5(32.5)

MPIF0630-R12M-XS

0.12

2.00

30.0(40.0)

32.0(38.0)

MPIF0630-R22M-XS

0.22

3.00

27.0(34.0)

21.0(24.0)

MPIF0630-R24M-XS

0.24

3.10

22.4(28.0)

18.4(23.0)

MPIF0630-R33M-XS

0.33

3.50

20.0(25.0)

19.0(21.0)

MPIF0630-R47M-XS

0.47

4.10

16.0(20.0)

16.5(18.0)

MPIF0630-R56M-XS

0.56

4.50

14.4(18.0)

15.0(16.5)

MPIF0630-R68M-XS

0.68

5.30

13.6(17.0)

14.5(16.0)

MPIF0630-R82M-XS

0.82

6.00

12.8(16.0)

12.5(14.0)

MPIF0630-1R0M-XS

1.00

7.40

12.0(15.0)

10.5(12.0)

MPIF0630-1R5M-XS

1.50

12.1

9.60(12.0)

10.5(12.0)

MPIF0630-1R8M-XS

1.80

12.6

9.40(11.8)

8.20(9.30)

MPIF0630-2R2M-XS

2.20

15.0

8.00(10.0)

8.50(9.50)

MPIF0630-3R3M-XS

3.30

22.0

7.60(9.50)

7.50(8.50)

MPIF0630-4R7M-XS

4.70

33.0

7.20(9.00)

5.00(6.00)

MPIF0630-5R6M-XS

5.60

42.0

5.20(6.50)

4.80(5.50)

MPIF0630-6R8M-XS

6.80

48.0

4.80(6.00)

4.20(5.00)

MPIF0630-8R2M-XS

8.20

60.0

4.40(5.50)

4.20(5.00)

MPIF0630-100M-XS

10.0

68.0

4.40(5.50)

3.80(4.50)

MPIF0630-150M-XS

15.0

113

3.20(4.00)

2.30(3.00)

MPIF0630-220M-XS

22.0

170

2.40(3.00)

2.00(2.50)

MPIF0630-330M-XS

33.0

270

2.00(2.50)

1.60(2.00)

MPIF0630-470M-XS

47.0

385

1.60(2.00)

1.20(1.50)


All test data is referenced to 25 °C ambient
Operating temperature range -55 °C to +125°C
Irms (A):DC current (A) that will cause an MPIF proximate ΔT of 40°C(reference ambient temperature is 25°C)
Isat(A):DC current (A) that will cause L0 to drop MPIF proximately 30%
The part temperature (ambient + temp rise) should not exceed 125°C under worst case operating conditions.Circuit design, component placement, PWB trace size and thickness, airflow and other cooling provisions all affect the     part temperature. Part temperature should beverified in the end MPIFplication.
Absolute maximum voltage 30VDC
