MPIF1040 Series

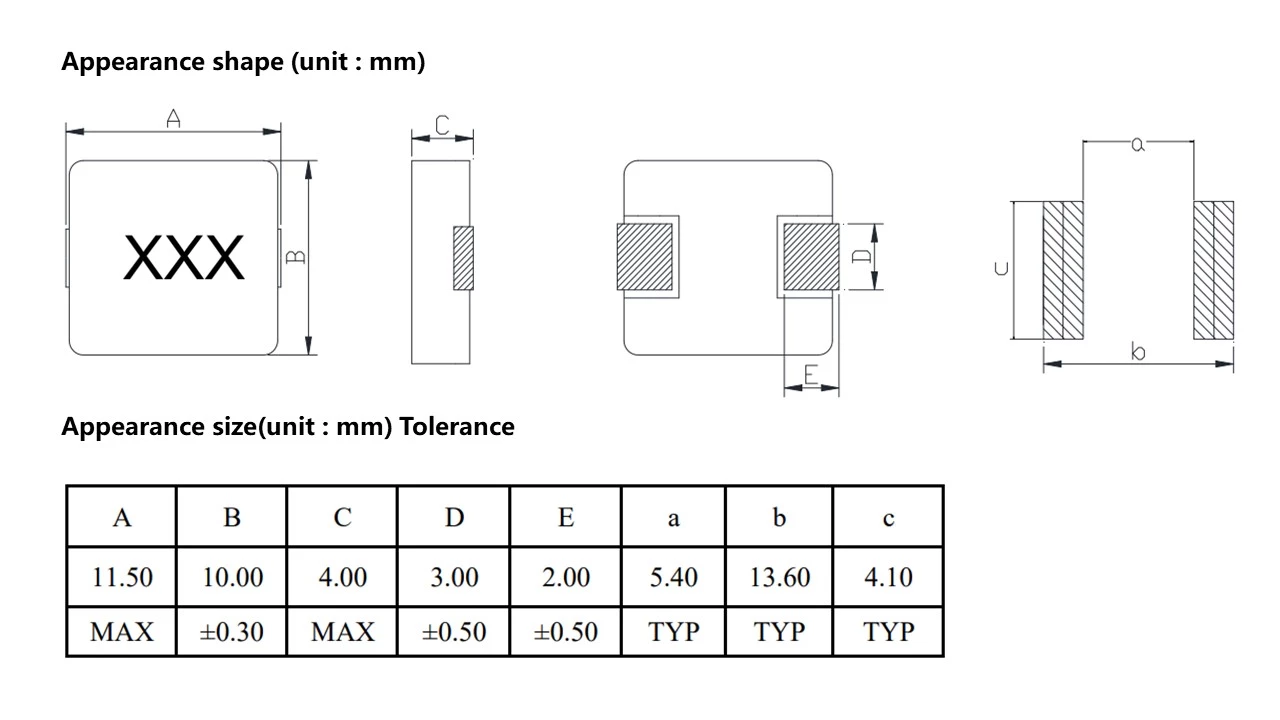

Part No. | Inductance | DC Resistance | Saturation Current | Heating Rating Current |
L0 (μH) | DCR (mΩ) | Isat (A) | Irms (A) | |
±20 %, 100 kHz, 1V | MAX | MAX(TYP) | MAX(TYP) | |
MPIF1040-R15M-LF | 0.15 | 0.65 | 60.0(75.0) | 40.0(45.0) |
MPIF1040-R22M-LF | 0.22 | 1.00 | 48.0(50.0) | 35.0(38.0) |
MPIF1040-R36M-LF | 0.36 | 1.20 | 36.0(45.0) | 25.0(30.0) |
MPIF1040-R47M-LF | 0.47 | 1.70 | 32.0(40.0) | 25.0(27.0) |
MPIF1040-R56M-LF | 0.56 | 1.80 | 26.4(33.0) | 20.0(25.0) |
MPIF1040-R68M-LF | 0.68 | 2.40 | 24.0(30.0) | 19.0(23.0) |
MPIF1040-1R0M-LF | 1.00 | 3.20 | 22.4(27.0) | 16.0(21.0) |
MPIF1040-1R5M-LF | 1.50 | 4.20 | 18.0(22.0) | 14.0(16.0) |
MPIF1040-2R2M-LF | 2.20 | 7.00 | 13.20(17.0) | 10.0(12.0) |
MPIF1040-3R3M-LF | 3.30 | 11.80 | 12.8(16.0) | 9.50(11.0) |
MPIF1040-4R7M-LF | 4.70 | 20.0 | 10.4(15.0) | 7.50(9.00) |
MPIF1040-6R8M-LF | 6.80 | 25.0 | 9.60(12.0) | 7.00(8.50) |
MPIF1040-8R2M-LF | 8.20 | 30.0 | 7.20(9.00) | 6.00(8.00) |
MPIF1040-100M-LF | 10.0 | 30.0 | 6.80(8.50) | 6.60(7.50) |
MPIF1040-150M-LF | 15.0 | 45.0 | 5.60(7.00) | 5.60(6.50) |
MPIF1040-220M-LF | 22.0 | 66.0 | 4.40(5.50) | 4.20(5.00) |
MPIF1040-330M-LF | 33.0 | 92.0 | 3.84(5.00) | 3.80(4.40) |
MPIF1040-470M-LF | 47.0 | 145 | 3.10(3.50) | 2.80(3.30) |
MPIF1040-680M-LF | 68.0 | 205 | 2.40(3.00) | 1.90(2.30) |
MPIF1040-101M-LF | 100 | 350 | 2.10(2.30) | 1.80(2.00) |
