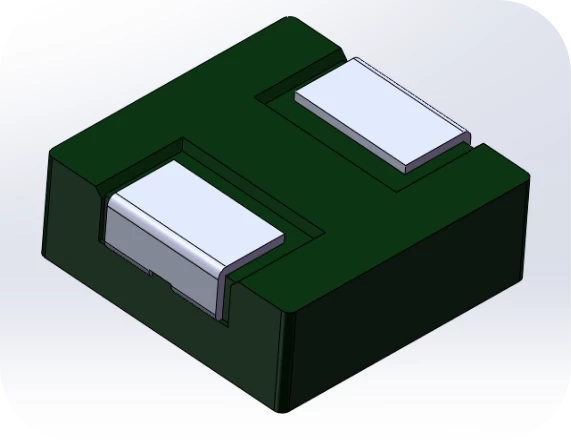

1. Dimensions (unit:mm) |
series | A | B | C | D | E | a (typ) | b (typ) | c (typ) |
MPIB0630 | 7.30±0.40 | 6.80±0.40 | 3.00MAX | 3.00±0.50 | 1.60±0.50 | 3.70 | 8.40 | 3.50 |
2.Features |
|
MPIB tops and PCs
Switch and servers
Base stations
DC/DC converters
Battery powered devices
SSD modules
4.Part Number System |
5.Electrical Characteristics |
Part No. | Inductance | DC Resistance | Saturation Current | Heating Rating Current |
L0 (μH) | DCR (mΩ) | Isat (A) | Irms (A) | |
±20 %, 100 kHz, 1V | MAX(TYP) | TYP | TYP | |
MPIB0630-R10M-XC | 0.10 | 1.70(1.20) | 60.0 | 32.5 |
MPIB0630-R22M-XC | 0.22 | 2.80(2.10) | 40.0 | 23.0 |
MPIB0630-R33M-XC | 0.33 | 3.90(3.50) | 32.0 | 20.0 |
MPIB0630-R36M-XC | 0.36 | 4.20(3.60) | 32.0 | 19.0 |
MPIB0630-R47M-XC | 0.47 | 4.20(4.00) | 26.0 | 17.5 |
MPIB0630-R56M-XC | 0.56 | 5.00(4.70) | 25.5 | 16.5 |
MPIB0630-R68M-XC | 0.68 | 5.50(4.80) | 25.0 | 15.5 |
MPIB0630-R82M-XC | 0.82 | 8.00(6.70) | 24.0 | 13.0 |
MPIB0630-1R0M-XC | 1.00 | 10.0(8.30) | 22.0 | 11.0 |
MPIB0630-1R5M-XC | 1.50 | 15.0(13.0) | 18.0 | 9.00 |
MPIB0630-2R2M-XC | 2.20 | 20.0(18.0) | 14.0 | 8.00 |
MPIB0630-3R3M-XC | 3.30 | 30.0(28.0) | 13.5 | 6.00 |
MPIB0630-4R7M-XC | 4.70 | 40.0(37.0) | 10.0 | 5.50 |
MPIB0630-5R6M-XC | 5.60 | 48.0(43.0) | 9.00 | 5.00 |
MPIB0630-6R8M-XC | 6.80 | 60.0(54.0) | 8.00 | 4.50 |
MPIB0630-8R2M-XC | 8.20 | 68.0(64.0) | 7.50 | 4.00 |
MPIB0630-100M-XC | 10.0 | 85.0(75.0) | 6.00 | 3.50 |
MPIB0630-150M-XC | 15.0 | 123(107) | 4.00 | 3.00 |
MPIB0630-220M-XC | 22.0 | 190(165) | 3.50 | 2.00 |
