MPIB1076D Series
MPIB1076D Series
CLASSIFICATION

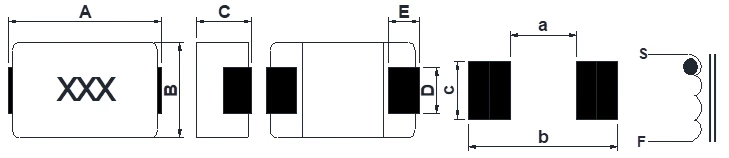

DIMENSIONS
DRAWING
分享到：
PARAMETER
| 1. Dimensions (unit:mm) |
series | A | B | C | D | E | a (typ) | b (typ) | c (typ) |
MPIB1076D | 10.10±0.50 | 7.00±0.50 | 6.00 MAX | 3.50±0.50 | 2.20±0.50 | 5.50 | 12.50 | 3.50 |
By Dimensional diagram
| 2.Features |
High rated current
Frequency up to 3MHz
125℃maximum total temperature operation
Low coreloss
Ultra low buzz noise due to molding construction
Halogen Free & ROHS compliant
|
DC/DC converters in distributed power systems.
DC/DC converter for Field Programmable Gate Array(FPGA).
Battery powered devices.
Thin type on-board power supply module for exchanger.
VRM for server.
High current, low profile POL converters.
PDA/notebook/desktop/server and battery powered devices.
| 4.Part Number System |
MPIB XXXX - XXX M
1 2 3 4
1.SERIES NAME
2.DIMENSIONS(1076D:10*7*6.0 mm)
3.INDUCTANCE(R12:0.12uH )
4.Inductance Tolerance ( M= ± 20% )
| 5.Electrical Characteristics |
Part No. | Inductance | DC Resistance | Saturation Current | Heating Rating Current |
L0 (μH) | DCR (mΩ) | Isat (A) | Irms (A) | |
±20 %, 100 kHz, 1V | MAX(TYP) | TYP. | TYP. | |
MPIB1076D-R12M-XA | 0.12 | 0.50(0.40) | 90.00 | 45.00 |
MPIB1076D-R15M-XA | 0.15 | 0.50(0.40) | 80.00 | 42.00 |
All test data is referenced to 25 °C ambient
Operating temperature range -55 °C to +125°C
Irms (A):DC current (A) that will cause an MPIB proximate ΔT of 40°C(reference ambient temperature is 25°C)
Isat(A):DC current (A) that will cause L0 to drop MPIF proximately 30%
The part temperature (ambient + temp rise) should not exceed 125°C under worst case operating conditions.Circuit design, component placement, PWB trace size and thickness, airflow and other cooling provisions all affect the part temperature. Part temperature should be verified in the end MPIBplication.
Absolute maximum voltage 30V
